Trike frame vibration fatigue testing machine (three strikes)

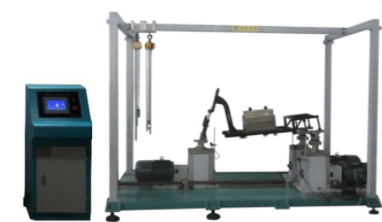

Second, trike frame vibration fatigue testing machine (three vibration) WD-8718C

1. Test principle: Second, the tricycle frame in the actual use of the process, due to the difference in road conditions, the car will produce a bumpy phenomenon, after a certain number of loading, detect its damage. Provide test data for manufacturers to evaluate the advantages and disadvantages of products and technical improvements.

2. According to the standard: DIN79100, GB3565, QB2176, JIS9401, GB 17761, QB1880

3. Features: The machine selects three groups of independent vibration source combination, through the hand screw adjustment way, can adjust the different front and rear wheel base and left and right wheel base, can meet the common two-wheel and three-wheel frame vibration test.

4. Test method:

1) During the test, the frame is fixed on the test machine in accordance with the standard method, and the position of the front and rear axles can be manually adjusted to adapt to the size of the frame;

2) Adjust the amplitude of the vibration to meet the standard requirements,

3) Fix an adjustable part to prevent loosening during the test and affect the test.

4) Set the required test times on the control box.

5) Adjust the maximum allowable deformation of the frame, and the machine will automatically stop testing after exceeding this deformation;

6) Start the machine to test. If the test reaches the set number or the specimen is damaged, the machine will automatically stop the test and keep the test results.

5. Technical parameters:

1) Control mode: automatic circuit control

2) Display mode: each vibrating head independent digital display

3) Applicable front and rear wheel base: 600-2000mm

4) Suitable for rear wheel left and right wheel base: 450-900mm, one of the rear wheel vibration head can be adjusted to the middle position.

5) Wheel base adjustment: manual screw adjustment

6) Vehicle test load: 500kg (specific load distribution can be determined according to customer requirements)

7) Vibration head vibration amplitude: 0-30mm adjustable

8) Vibration head vibration frequency: 6-10Hz adjustable

9) Equipped with 3 sets of independent vibrating heads

10) Power source: 3 3KW variable frequency motors

11) Loading weight: according to the test standard

12) Test times: 0-999,999 times can be set, automatic retention of test results, before and after separate counting, non-interference.

13) Micro switch: with a safety micro switch, the test object is damaged, automatic shutdown facilities

14) The main body of the machine is a steel component, high strength, not easy to deformation.

15) The base of the machine is solid steel with good stability, equipped with reinforcing bars and adjustable level shock-proof foot.

16) Electrostatic spraying of machine appearance, electroplating of other parts, high rust prevention ability, beautiful appearance.

6. Equipment details:

1) One host

2) A set of weights

3) A set of micro switch and accessories

4) A copy of the manual

5) One certificate of qualification

6) A warranty card

6 Instructions for use:

1) Installation instructions: The machine is equipped with a rotating electric hoist hanger, which is convenient to lift the tricycle and the weight of the tricycle.

2) Front axle vibration mode: First use a false indicator front axle core fixed on the machine, and then fix the front shock absorber fork on this false indicator front axle core.

3) Rear axle vibration mode: You can choose to fix the rear axle part or the damping plate spring part.

4) Vibration mode: It can choose single front vibration, unilateral back vibration, bilateral back vibration, front vibration and unilateral back vibration, front vibration and bilateral back vibration combination mode, flexible and changeable. Adapt to various conditions of the test.

5) Equipped with multiple sets of damage stop device, the test frame fracture or deformation is too large, automatic stop protection.

6) Equipped with safety cover, all moving parts have safety protection measures.
