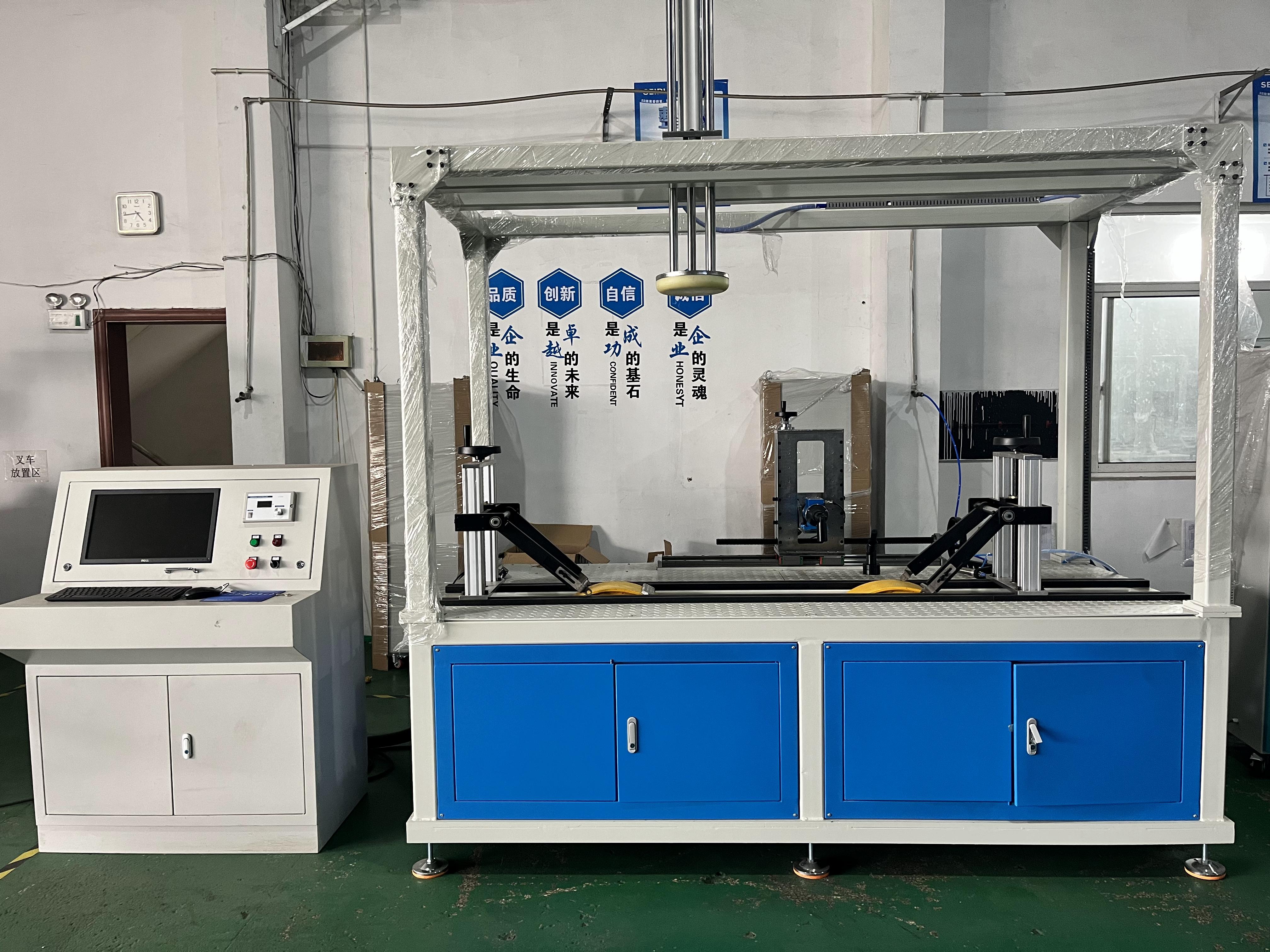

Electric bicycle comprehensive test performance testing machine

PC control servo control electric bicycle comprehensive performance testing machine WSD-8721

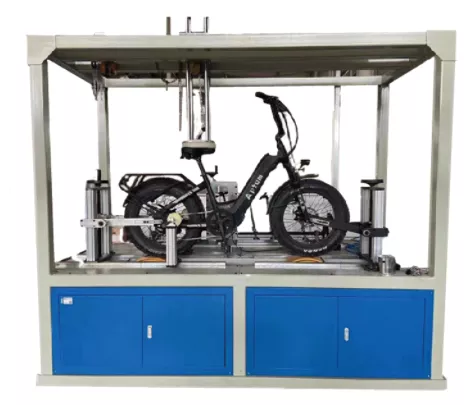

First, scope of application: The machine mainly simulates the actual use environment of electric bicycles. Put the finished car on the testing platform, configure and fix the weights according to the standard, adjust the safety device, and set the relevant parameters on the computer, then the test can be carried out.

Second, the test principle: EN15194clause4.2.4, 4.2.6 & 4.2.7, GB17761-19995.1.4 --1.8; 5.2.1; 6.1.1. 6.1.6 ISO4210

Iii. Test content:

1. Electric vehicle active mode :(Use the electric vehicle itself to drive the test roller)

1) The damping torsion of the roller of the test equipment can be set to 0-100N.m (simulate the condition when riding on the actual road)

2) It can automatically detect and record the mileage of the electric vehicle battery. After full charge, the electric vehicle runs at normal speed, and runs until the electric vehicle undervoltage protection, automatically records its mileage and stops the test

3) Can detect the input voltage V/ current A/ power W of the electric vehicle battery, and the use of amperhours (A.HR)

4) Can automatically detect the normal driving speed and maximum driving speed of electric vehicles. Through computer control, the electric vehicle is automatically detected after reaching a certain speed and its current begins to become smaller, and the computer automatically records its maximum current speed as its maximum speed

5) The output power of the electric vehicle can be automatically detected. The maximum output power of the electric vehicle is calculated automatically by computer control, and the maximum efficiency of the electric vehicle is calculated automatically by recording the output current and voltage of the battery at the same time

6) The test can be stopped when the battery voltage is lower than the set value (the lowest allowable voltage value).

2. Durability test detection mode (use test equipment to actively drive electric vehicles)

1) Test speed of 0-40km/hr can be set for detection

2) Can detect and record mileage

3. Braking performance and road condition test

1) Dry braking performance test, you can set a separate front brake dry braking test, a separate rear brake dry braking test or a dry braking test at the same time. And automatically draw a variety of curves: braking force -- time curve, braking acceleration -- time curve. And make a judgment on whether it is effective

2) Wet braking performance test:

The test method is the same as dry braking performance test. In addition, the sprinkler system should be started no less than 5S before braking to spray the brake system, and continue to spray water until the end of the test cycle. And automatically draw a variety of curves: braking force -- time curve, braking acceleration -- time curve. And make a judgment on whether it is effective.

3) Heat resistance test:

Adjust the machine and bicycle according to the standard requirements. When the line speed of the drum is 12.5km/h±5%, the test is carried out. The test lasts for 15min±2 min. Can automatically calculate and control the brake work, continuous braking time control (intermediate discontinuity release the brake lever)

4. Report processing: All the above test results can be kept in the computer, set the report format independently, and print the report freely.

5. 100 km power consumption test: using the electric vehicle's own battery power supply, after driving a certain distance at normal speed, the computer can automatically measure the actual power consumption of the electric vehicle when driving 100 km according to the recorded speed, mileage, battery current, battery voltage and other parameters.

4. Technical parameters:

1. Torque sensor capacity: 0-100N.M

2. Ambient temperature of torque sensor: 0℃--40℃

3. Force sensor: 200kg 50kg

4. Machine drive speed: 0-- 40KM/Hr adjustable

5. Speed measurement accuracy: ≤2%

6. Distance measurement accuracy: ≤1%

7. Adjustable distance between front and rear roller wheel base: 600-1300mm

8. Grip force: 40N, 60,...... 180N can be set

9. Brake force control: closed-loop control

10. Braking time: 0-60 minutes 60 seconds can be set

11. Brake release time: 0-60 minutes 60 seconds can be set

12. Brake times: 0-999,999 can be set

13. Tire burst protection: automatic detection

14. Battery overload shutdown protection: automatic detection

15. Front and rear drum diameter: Φ260MM

16. Electric vehicle counterweight loading mode: front and rear axle and central axle loading

17. Counterweight: 100kg

18. Brake force display mode: computer digital display

19. Front and rear brakes: optional (single front brake, single rear brake, front and rear brake simultaneously)

1) Brake work: computer automatic display

2) Transmission mode: front and rear wheels drive at the same time, electric vehicle single-wheel movement

3) System resistance: through magnetic powder brake

4) Data acquisition system: American NI acquisition card

5) Main motor: inverter motor

6) With infrared microswitch 5 groups (when the electric vehicle tire or other parts are damaged, some parts fall, immediately stop)

7) Power supply: 10KW 3-phase 380V 50Hz

5, computer: brand computer DELL OptiPlex 360 or the same product

The configuration is as follows:

1. Processor: OptiPlex(TM)360 MT includes Intel (R) Pentium (R) dual-core processor E2200

2. Key disk: USB port entry-level keyboard (English) - Black

3. Mouse: Dell (TM) USB optical mouse (black)

4. The Computrace Disable Info Mod is available in the system

5. Project included in the system: Integrated Broadcom(R) 10/100/1000 LOM(BCM5787)

6. The project has been included in the system: Integrated ADI-1984 high definition audio

7. The project is included in the system: Intel (R) G31 Express chipset

8. The project is included in the system: integration of Intel (R) Graphics Media Accelerator 3100

9. Memory: 1GB NECC dual-channel DDR2 667MHz SDRAM memory

10. Optical equipment with 1:16X Max DVD-ROM Drive with RAM function

11. Display: 19" widescreen LCD display

12. DiagnosticCD: OptiPlex diagnostic CD suitable for 32-bit operating systems

13. SATA Hard Drive: 160GB SATA hard drive (7200RPM - 8MB cache)

14. OPERATING SYSTEM: The latest dedicated test software under WINDOWS, the software itself contains detailed operation instructions, and a set of detailed operation instructions are attached. The computer can be compatible with OS/2, NOVELL, UNIX, WINDOWS NT and other networks and multi-users, and the operating system is suitable for various software packages compatible with the PC. Simplified Chinese interface, Chinese and English test report.

15. List machine: HP color list machine, can automatically print the maximum value, break point and other functions

Six, microcomputer PC online function description:

Basic functions The following data can be obtained by executing the test procedure of the electric vehicle comprehensive test machine:

The maximum value of torque, power, speed, current, voltage, etc. at each stage

1. Real-time curve of speed, current, voltage to torque Real-time curve of power and work

2. Braking force - time test curve

3. Deceleration-time test curve

4. Brake work-time test curve

Seven, equipment details

1. One main machine (including electrical control cabinet)

2. One computer (including host and 19 "monitor)

3. One hp printer

4. A set of fixtures and weights

5. A copy of the manual

6. One certificate of qualification
