Scooter steering fatigue testing machine

Scooter steering fatigue testing machine WSD-8416

1. Scope of application: This machine is used for rotating fatigue test of scooter handlebars, front fork components and first tube components. The system uses servo motor + torque controller for constant force rotating fatigue test, which provides data support for manufacturers to monitor product quality and life

2. According to standards and principles: test methods specified by customers

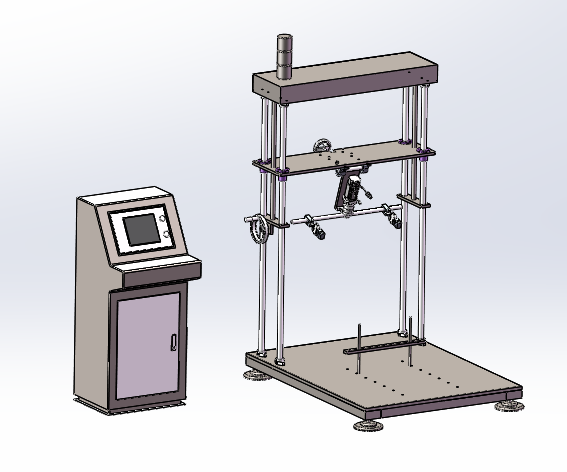

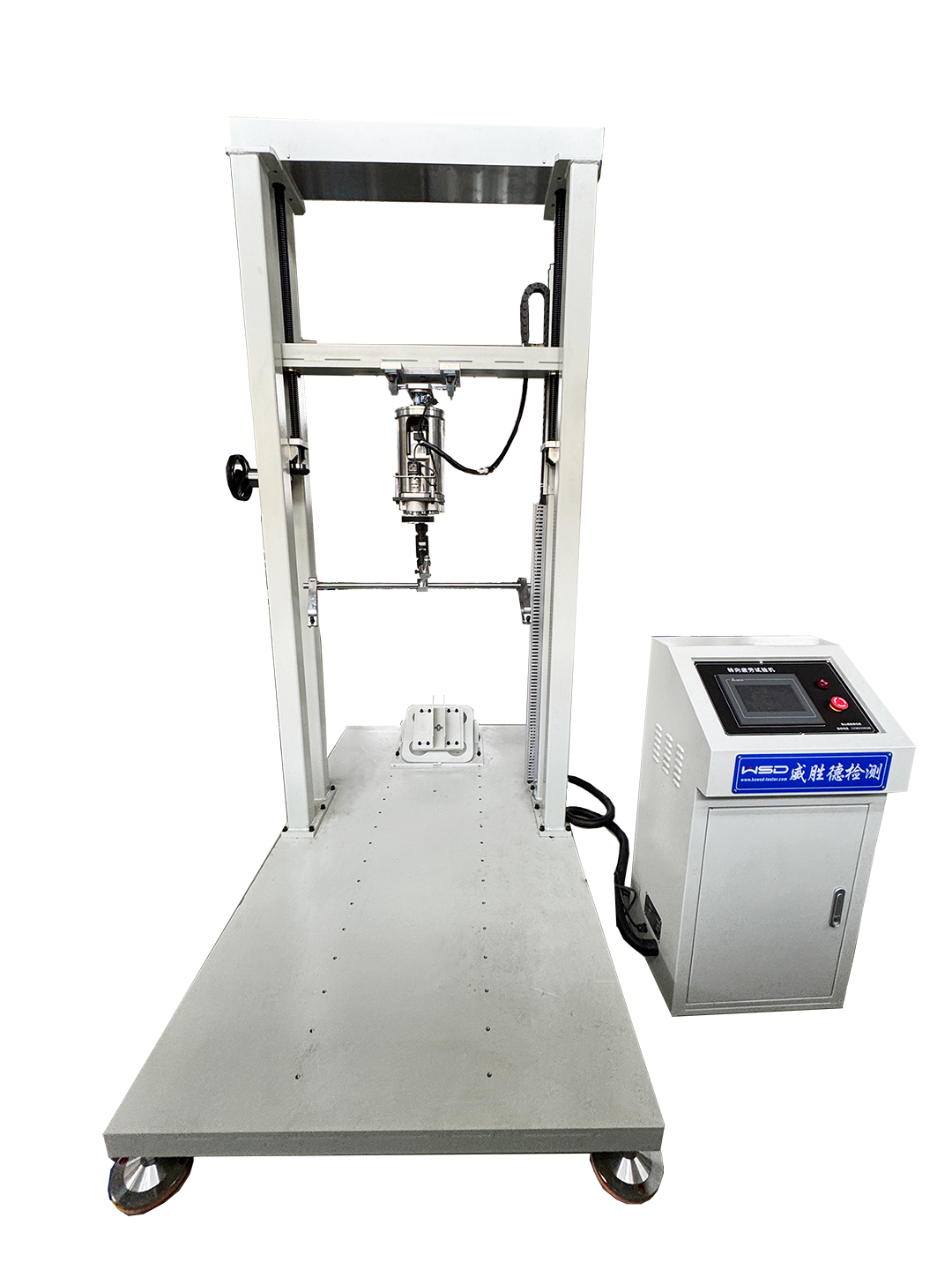

Third, equipment diagram:

Scooter steering fatigue testing machine WSD-8416.png

Four, meet the main parameters of the scooter:

a) The Angle between the riser and vertical direction A=5°~20°

b) Car height: C=800~1200mm

c) Car length: B=950~1150mm

Five, the main technical parameters of the equipment:

a) Equipment rotation Angle: full rotation (can be freely set according to the scooter handlebar rotation Angle)

b) Control mode: Delta PLC, closed-loop control based on torque parameters

c) Display mode: 7 inches Delta PLC

d) Power source: Japan Panasonic servo motor + Humphrey planetary reducer output torque of about 35N.m

e) Sensor: Dynamic torque sensor 50N.m

f) Adjusting mechanism: up and down, left and right adjustment by screw + hand wheel combination

g) Fixing mechanism: scooter bottom plate batten, scooter body lifting fixed fixture

h) Other requirements: installation equipment indicator three-color light, paint main color RAL 7035, parts nickel plating treatment, aluminum anodizing

i) Power supply: AC 220v 50Hz
