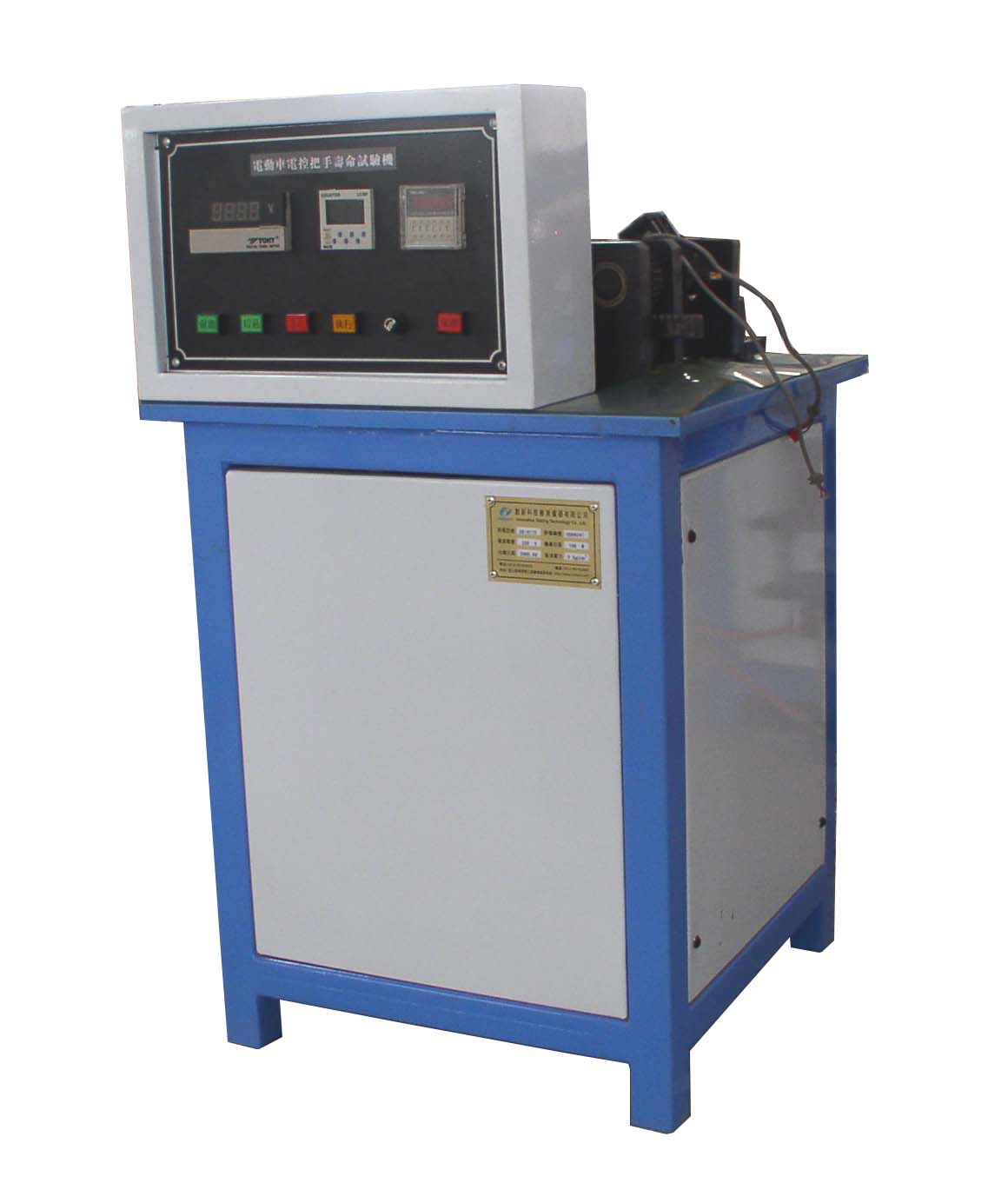

Electronic control handle life testing machine

Scooter finger-dial throttle life testing machine

one. Scope of application: Used for the life fatigue test of scooter finger-dial throttle

two. Basis: Customer provided

Three. Main technical indicators:

1) Control mode: PLC and touch screen control.

2) Display mode: full color LCD touch screen

3) Set the rotation Angle of the handle: 1-- 90 degrees

4) Set the rotation frequency of the handle: 1-- 180 times/min

5) Power source: domestic servo motor

6) Test times: 0-999,999 times can be set, automatically retain the test results

7) Micro switch: with a safety micro switch, the test object is damaged, automatic shutdown facilities

8) The main body of the machine is a steel component with high strength and is not easy to deform.

9) The base of the machine is solid steel, with good stability, equipped with reinforcing bars and water transfer feet.

10) Electrostatic spraying of machine appearance, electroplating of other parts, high rust prevention ability, beautiful appearance.

Four. Equipment details:

² One host

² One electric control box

² Two sets of fixtures

² One certificate of qualification

² One copy of instructions
