Automobile pull rod ball head mud testing machine

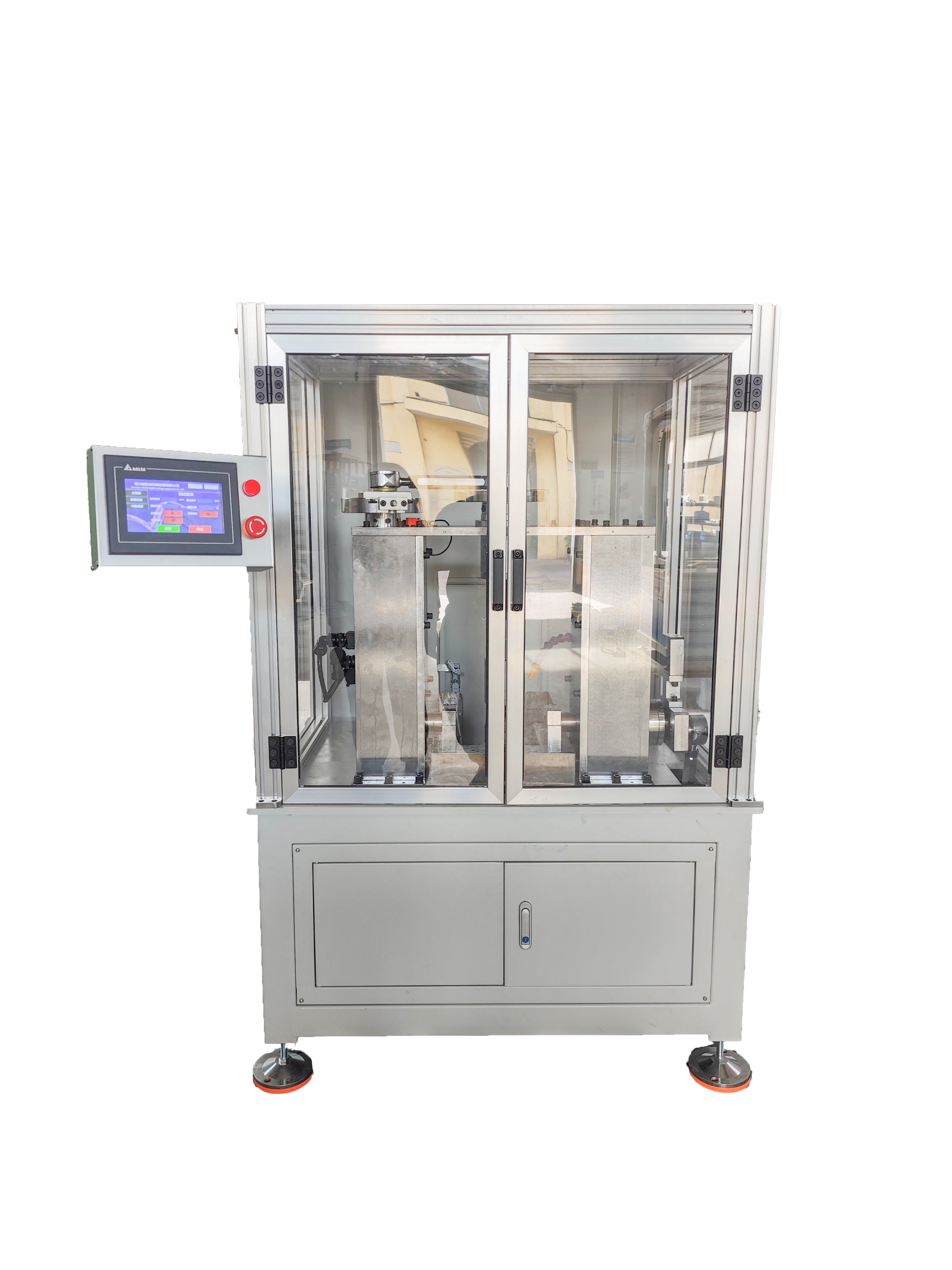

Automobile pull rod ball head mud testing machine WSD-8802

I. Scope of use;

Simulate the installation state of the ball head in the actual loading, test all kinds of ball heads under the spray of mud water prepared according to the standard, at the same time, do a certain Angle and a certain test frequency of rotary fatigue, swing fatigue test, test the specimen after a certain number of test times, the damage of each part.

Ii. Based on standards;

² Fully comply with the mud resistance test specifications of the tie rod ball head, and the independent test specifications of the ball head manufacturer.

² This machine is a simplex bit, which can be extended to multi-task bits during production

² Rotary action and swing action using independent motor drive, do not interfere with each other.

The rotary action is driven by variable frequency motor, with high loading frequency stability, accurate accuracy and wide adjustable range. Loading frequency **CPM----**CPM. The test frequency can be turned directly on the control panel of the inverter.

² The swing action is driven by variable frequency motor, with high loading frequency stability, accurate accuracy and wide adjustable range. Loading frequency **CPM----**CPM. The test frequency can be turned directly on the control panel of the inverter.

² Spray system: independent mud mixing motor is used to ensure the uniformity of the test mud. The sprinkler pump and motor are integrated, durable and maintenance-free.

² Mud water tank, spray structure is made of stainless steel or other anti-corrosion, anti-rust materials, beautiful and durable.

Ii. Technical parameters;

1) Rotation test frequency: **PM ~ **CPM

2) Swing test frequency: *CPM ~ **CPM

3) Rotation and swing times: 0-- 999,999 can be set

4) Rotation test Angle: ±**° ~ ±**°

5) Swing test Angle: ±**° ~ ±**°

6) Mud water every 10 minutes, spray 1 minute, water pressure 8MPa

7) The mud tank is equipped with a mixing motor

8) Display mode of test times and test frequency: full digital display

9) Test frequency display accuracy: 1RPM(RPM)

10) Rotation and swing Angle display mode: pointer plus dial indication, minimum scale 0.5°.

11) Rotation Angle and swing Angle adjustment structure: eccentric wheel type, equipped with anti-loose device

12) Rotation Angle and swing Angle turning mode: manual adjustment (change the rotation radius of the crank)

13) The overall weight of the swinging structure: the structure is balanced to ensure the stability of high-speed movement.

14) Rotation and swing drive mode: variable frequency motor plus stepless reducer, high control accuracy, good stability

15) Stop mode: automatic stop after reaching the set test times

16) Equipped with quick replacement fixture, convenient with different specimens.

17) Safety protection: automatic shutdown protection, see-through window protective cover mechanical safety protection (with transparent plexiglass, forced exhaust and lighting devices)

18) The whole machine adopts steel structure, high stability and firmness

19) The appearance of the whole machine electrostatic spraying, other parts electroplating treatment, high rust prevention ability, beautiful appearance

20) Inverter motor brand: Dongyuan brand

21) Inverter brand: Tai 'an

22) The bearing adopts Japanese NSK brand

23) The electrical components adopt Omron, Shilin, LG and other famous brands

24) Counter: Yangming, Taiwan

25) Machine weight: about 400kg

26) Power supply: Ac220V 2.5kw

27) Shape: 1500mm (length) x800 mm (width) x1500 mm (height)
