Office chair single impact testing machine

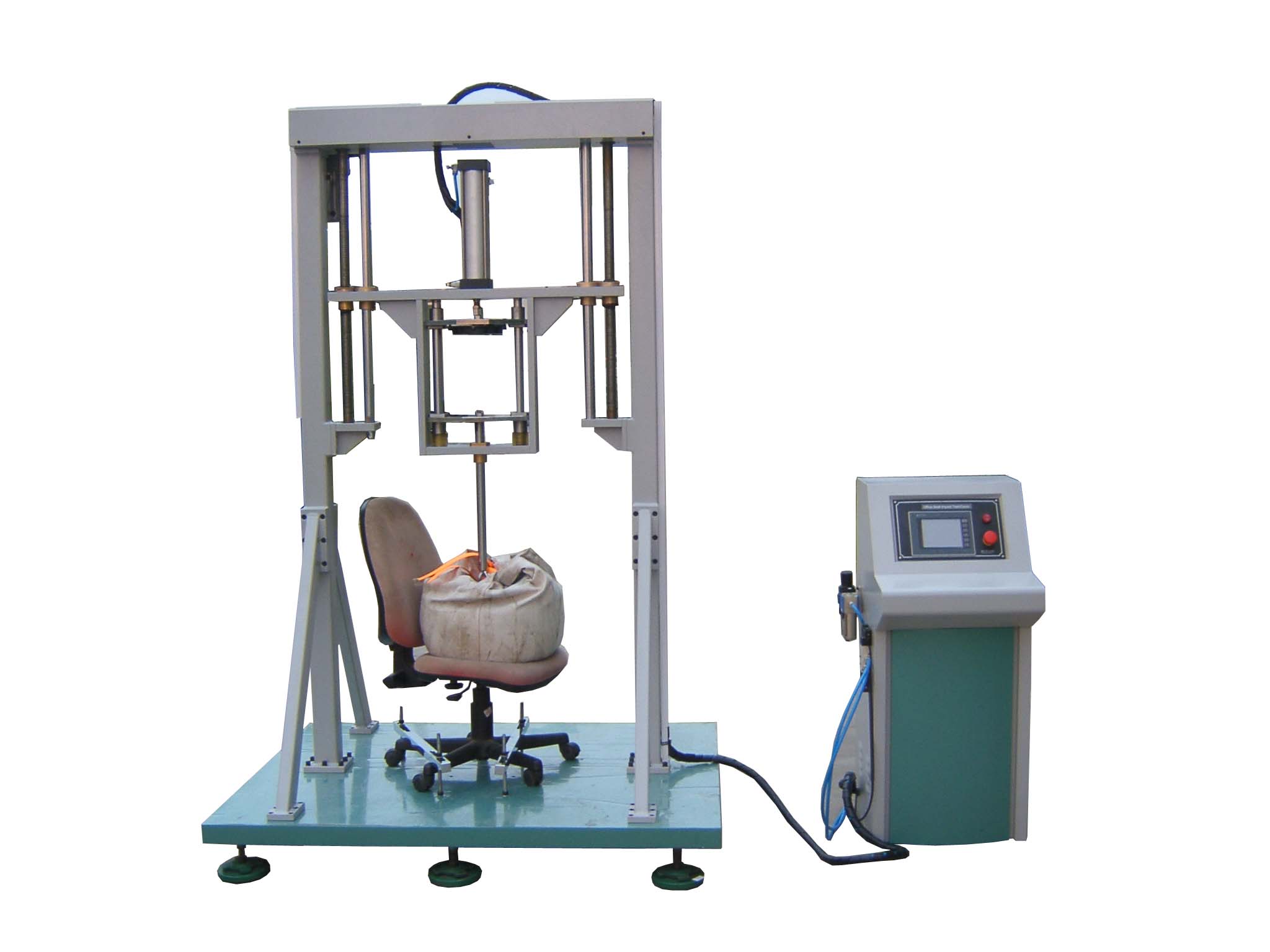

Office chair single impact testing machine WSD-8609

one. Test scope:

Simulate the actual use of the user, with a certain weight of the sandbag to the specimen free fall impact action, after the impact to check whether the specimen is damaged, so as to judge the specimen to withstand fatigue stress and wear ability.

two. Applicable standards: ANSI/BIFMAX5.1-2002 QB/T2280-2007, ENV581-2--2000 and other relevant standard requirements

Three. Basic requirement

1. The equipment fully meets the test conditions, methods and functions specified in the relevant provisions of ANSI/BIFMAX5.1-2002 standard.

2. The equipment can be adjusted to the test height specified in the standard, equipped with a scale indicating the impact height.

3. After the test, the test personnel should check the integrity of the test piece and determine the impact resistance of the test piece.

4. Rise and fall manual key control, self-locking operation.

5. During the test, the operator only needs to press the impact button to realize the impact of the sandbag free-falling impact specimen.

6. Set safety measures when loading the load (or loading block) to prevent personal injury caused by falling down during the test.

Four. Technical requirement

1. The maximum load that the electric suction iron can absorb: 400LB

2. Moving beam up and down movable stroke: 700mm

3. Cylinder specification: ¢80x300

4. Test times: 0-999,999 times can be recorded

5. Control mode: PLC control

6. Display mode: full color LCD touch screen

7. Data storage: computer memory and U disk

8. Report generation method: The data can be automatically printed on the ordinary computer through the U disk and the test report

9. Display mode: digital display

10. Brand of cylinder and other pneumatic components: AirTAC

11. Impact height position sensor: 4

12. Beam up and down adjustment mode: electric adjustment

13. 2 percussion canvas sandbags are randomly equipped

14. The main body of the machine is steel component, high strength, not easy to deformation.

15. The base of the machine is solid steel with good stability, equipped with reinforcing bars and flat feet for water transfer.

16. Electrostatic spraying of machine appearance, electroplating of other parts, high rust prevention ability, beautiful appearance.

17. Use gas pressure: 6 KG/CM2

18. Power supply: 220V 50HZ 800w
