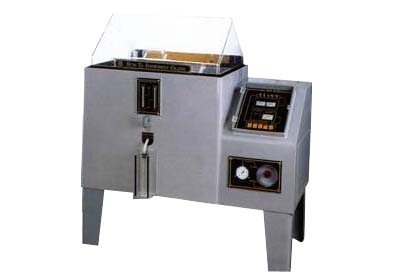

Brine spray tester (Medium salt)

Brine spray testing machine (medium salt) WSD-8907

1. Experiment space: 900*600*500 (L*D*H)m/m. mesohaline

2. Power supply: 220V 50HZ.

3. Materials used:

(A) The laboratory adopts P.V.C. polyvinyl chloride plate with a thickness of 6mm and a temperature resistance of 80℃.

(B) Laboratory seal cover: transparent acrylic impact resistant plate, thickness of 6m/m or more.

(C) Test refill tank: automatic water level control, automatic liquid replenishment.

(D) The saturated air barrel adopts high pressure barrel for the best insulation effect.

(E) Laboratory basket frame: plane chamber index frame, Angle 15 degrees to 30 degrees Angle, fog and fog on all sides are completely consistent, and the number of test pieces is placed.

4. Use temperature: According to CNS.JIS.ASTM specifications, can be set constant temperature control.

(A) Saline spray test:

(1) Laboratory: 35℃±1℃.

(2) Saturated air barrel: 47 ° C ±1 ° C.

(B) Corrosion resistance test:

(1) Laboratory: 50℃±1℃.

(2) Saturated air barrel: 63 ° C ±1 ° C.

5. Air supply system: the air pressure of 1kg/cm2 is adjusted in two sections, the first section is slightly adjusted, the second section is precision adjusted, and has an air filter device.

6. Spray method:

(A) Adopt the Bernout principle to absorb brine and then atomize, the atomization degree is uniform, no blocking crystallization phenomenon, can ensure the continuous test standards, in line with ASTM, JIS, DIN, CNS, ISO requirements.

(B) Nozzle: made of special glass nozzle, the size of the spray amount and the spray Angle can be adjusted

(C) Spray volume: 1-2m.80cm2 /1hr.

7. Heating system: isolated water heating method, according to CNS, JIS, ASTM specifications used, when the temperature reaches the automatic constant temperature state to make the temperature accurate, less power consumption.

8. Control system:

(A) Laboratory temperature controller 0-99.9℃.

(B) Saturated air barrel temperature controller 0-99.9℃

(C) Heating tank liquid expansion safety temperature controller 0-120℃

(D) Saturated air tank liquid expansion safe temperature controller 0-120℃

(E) Digital display time Controller 9.9S-9990HR ANLY AH5R.

(F) Time integrator 0-9999.9HR

(G) Precision adjustment of primary pressure: including air filter

(H) Pressure gauge: 2.5kg/cm2 precision 0.01kg/cm2

(I) warping plate lighting buckle switch: can continuously buckle more than 20,000 times

9. Safety protection device:

(A) Automatically cut off the power supply at low water level.

(B) Automatic power off device over temperature.

(C) Safety warning device.

10. Equipment details: one host; A set of storage racks; A standard measuring cylinder; A thermometer; A collector; A glass nozzle; 500g bottle of sodium chloride (NaCl); A copy of detailed operating instructions; One certificate of qualification.
