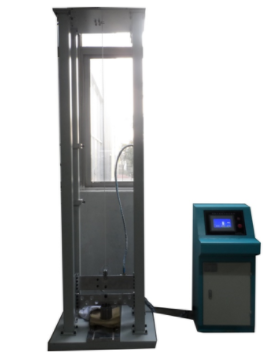

Bicycle comprehensive impact testing machine

Bicycle comprehensive impact tester WSD-8741

Introduction: This machine is used for impact test of bicycle parts, suitable for front fork drop hammer impact, front forklift frame assembly impact; Front forklift frame combination drop hammer impact, foot pedal horizontal, vertical, diagonal drop hammer impact, handlebar combination impact, crank vertical impact, flower drum shaft impact and other test functions

2, according to the standard: ISO4210 bicycle parts impact test

Three, technical parameters:

1. Impact height: greater than 2m, with height identification ruler, can be based on the height of the weight to do zero mark

2. Bottom platform: Length * width 1400*1000mm, with T-shaped slot plate for easy installation

3. Weight weight: 3-26.5kg, according to test requirements

4. Weight lifting method: guide rail and DC motor lifting, can be infinitely variable speed

5. Upper and lower limit moving device: lifting upper limit, lower limit protection switch and positioning setting

6. Control mode: Kunlun state or Delta 7 inch full color LCD touch screen control

7. Adjust the position of the lock screw selection of quick disassembly, easy to operate

8. The main body of the machine is steel component, high strength, not easy to deformation

9. The base of the machine is solid steel with good stability, equipped with reinforcing bars and flat feet for water transfer.

10. Electrostatic spraying of machine appearance, electroplating of other parts, high rust prevention ability, beautiful appearance

Fourth, equipment details:

1. One host

2. Fixture set

3. Six sets of weights are matched according to the standard

4. One electric cabinet

5. A copy of the manual

6. One certificate of qualification

7. A warranty card
