Axial wear testing machine

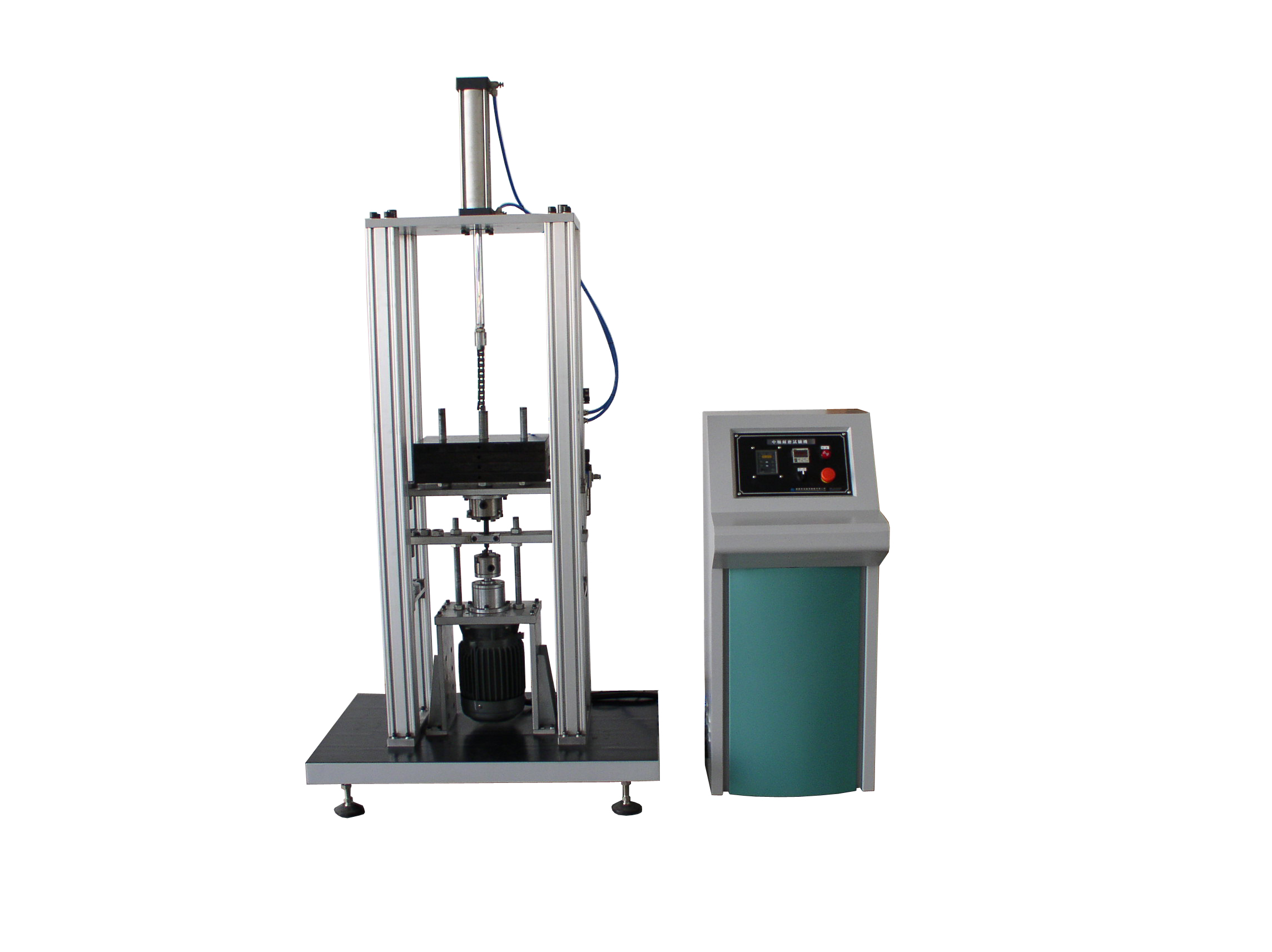

Axial wear testing machine WSD-8726

one. The machine special shaft wear-resistance, simulate the actual use state, the flower drum is fixed on the fixture to load the standard weight, test the shaft after a certain number of wear, its raceway surface is spalling and concave phenomenon. .

two. Main performance:

1) Test basis: QB/T 1884

2) Scope of application: bicycle axle

3) Loading weight: 150kg

4) Rotation frequency: 0-2000 RPM /min adjustable

5) Power source: variable frequency motor

6) Test time: 0 ~ 999(hr/min/s) freely set

7) Weight unloading mode: cylinder driven

8) Stop: reach the number of times or the specimen halfway damaged, automatic stop, and retain the number of tests.

9) Micro switch: with a safety micro switch, the test object is damaged, automatic shutdown facilities.

10) Horizontal feet: there are horizontal adjustment feet around the front and back, adjustable level.

11) Appearance: electrostatic spray, electroplating hard chrome treatment

12) Power supply: three-phase 380V 50HZ

13) Air source: 0.5≥5kgf/cm2

Three. Equipment details:

² One host

² One electric control box

² One set of weights

² Micro switch and accessories

² One certificate of qualification

² One copy of instructions
