Motor aging performance testing machine WSD-8740

First, the scope of application: This machine is designed for testing the aging performance of the motor, and provides the load, speed, running time and other performance parameters of the motor during the test, which provides a basis for manufacturers to further improve the quality of the motor

Second, the testing machine function:

1) Load function: The magnetic powder brake is provided with adjustable current through the loading controller, so that the magnetic powder brake generates torque that is basically linear with the current to load the hub motor.

2) Measurement function: test time, speed and other data of no-load test, torque, speed and running time of load test

3) Limited function: load torque, running time and other parameter Settings

4) Load cooling device: water cooling

Third, the testing machine schematic diagram:

Four, the main technical parameters:

1) Magnetic particle controller: 100N.M

2) Speed measurement accuracy: ±0.5% unit rpm

3) Allowable speed: 1500rpm

4) Running time: minutes and seconds, can be set freely

5) Control system: Taiwan Delta PLC

6) Display system: Taiwan Delta touch screen

7) Cooling system: water cooling

8) The motor installation position uses Taiwan silver linear guide rail

9) Add a ground steel plate to the table surface

10) The whole machine is built by European standard aluminum profile, the platform electrostatic spraying, other parts chrome plated, equipped with special footing

11) Power supply: AC 220V 50Hz

12) Overall size: about 1200*600*1200mm

5. Equipment details:

1) One host

2) One set of electric control box

3) A copy of the manual

4) A warranty card

5) One certificate of qualification

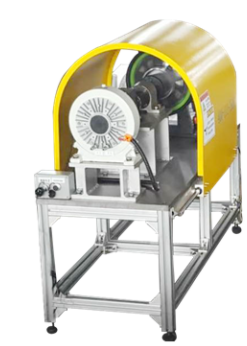

The device style is for reference. The actual device prevails
