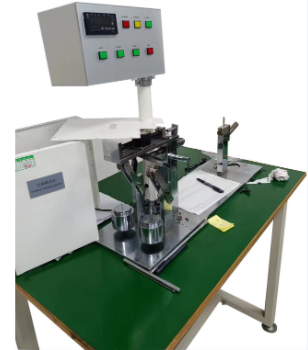

Dial controller cable distance tester

Wdsd-8772 dial controller cable distance tester

First, simulate the loading state of the steering controller is installed on the simulated handlebar cross bar, the use of counterweight weights to simulate the load of the steering controller in actual use, and the use of displacement sensors to measure the distance of the steering controller in different gear conditions.

2. Test standard: QB/T 1895-2019 and customer's actual use requirements

Three, the main performance:

1. Display mode: The digital instrument displays the distance value of the cable

2. Maximum measuring distance of cable: 50mm

3. Cable load weight: 50N-- 100N adjustable

4. Simulated handlebar bar diameter: 22.2mm

5. The mounting seat of the fixed analog handlebar cross bar can be adjusted back and forth to adapt to different dimensions of the dial controller

6. Pull wire clamping method: using drill chuck jig, convenient and fast

7. The machine adopts table-type design and is equipped with 4 adjustable horizontal feet.

8. The main body of the machine is packaged with sheet metal, which is simple to purchase.
