Saddle cold impact testing machine

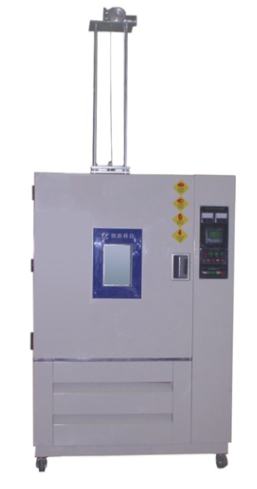

Saddle cold impact testing machine WSD-8723

First, impact part: This machine for foot, saddle, synthetic resin, plastic test objects and other cold impact test, can achieve a multi-function test, can carry out a variety of impact tests, reduce the cost.

Ii. Executable tests:

1) cold impact test of synthetic resin

2) cold impact test of plastic test object

3) The impact height can be defined

Third, constant temperature and humidity part of the technical data:

1) Temperature range: -40℃ ~ 100℃

2) Humidity range: 25% ~ 98%

3) Analytical accuracy: Temperature :0.1℃

4) Cooling speed: 0.7℃ per minute

5) Inner box size: 1000x1000x1000(mm) DxWxH.

6) Inner box material: SUS#304 heat and cold resistant stainless steel plate

7) Outer box material: cold-rolled plate electrostatic spray

8) Insulation material: high density glass wool and high strength PU foam insulation material.

9) Auxiliary equipment: double-layer high tension compression, three shelves, one test hole, multi-layer vacuum glass window;

Iv. Freezing system and heating system:

1) Originally imported energy-saving high-efficiency compressor.

2) Wavy fin type forced air supply condenser.

3) Slope FIN-TUBE evaporator.

4) Original imported solenoid valve; Drying filter; Expansion valves and other chilled components.

5) Inner spiral K-TYPE refrigerant copper pipe.

6) U-TYPE fin type high speed electric heat pipe.

Five, air circulation system and drainage system:

1) Multi-wing centrifugal circulation fan.

2) FLOWTHROW air supply mode; Horizontal diffusion vertical heat exchange arc cycle.

3) Adjustable side blowing outlet and protection network return air outlet.

4) The drainage system recyles the vortex drain and the U TRAP sedimentation device.

Six, circuit control system: microcomputer control mode

1) The original programmable temperature and humidity controller imported from Japan, precise, stable and easy to operate.

2) Digital direct setting display. All conditions are locked entirely automatically by the microcomputer.

3) Various control conditions. It can be monitored in operation. Such as instantaneous output power. Temperature to know the set value.

4) In Settings. A warning signal is provided if an error occurs.

5) Power outage memory device for two years.

Seven, safety protection system: no fuse protection switch, overtemperature protection device, refrigeration compressor overload protection device.
