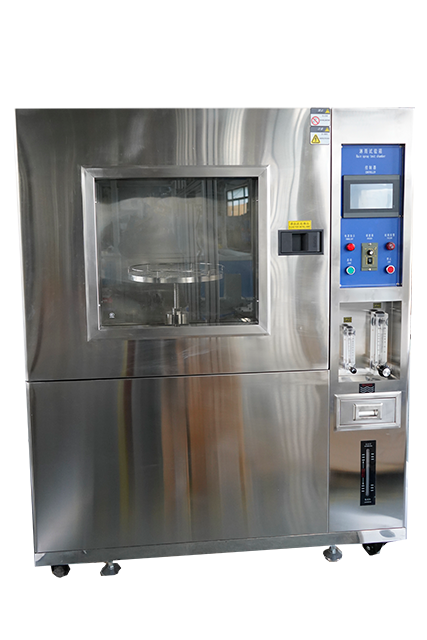

Programmable rain test chamber (IPX3 IPX4)

Programmable rain test chamber (IPX3IPX4) WD-8114

I. Overview of the machine:

This equipment is suitable for all kinds of auto parts and electronic and other industrial electronic products such as rain dust and sand immersion test, auto parts including lights, door locks, electrical, instrumentation, dust jacket, electronic household appliances and other systems of the full seal stability test.

Rain test box is a kind of artificial simulation of rain test box, as we all know that all components and equipment in the atmospheric pressure environment, whether it is working or storage state, will be affected by various degrees of water (containing impurities), which rain recently, rain test is to prevent these devices from changing the degree of work efficiency after rain penetration and rain.

The performance index of this test box meets GB/T10485 "Automobile and Trailer external devices, Automobile and trailer external lighting and signal devices basic environmental test, industrial electronic products basic environmental test" and JIS, MIL and other related test standards. ISO20653-2006, GB-4208-93, GB2423.37-89La, GB4208-93, DIN40050.5K corresponding to the national standard rain test.

IPX3-IPX4 Pendulum tube test device specifications

Box size

Width 800 x depth 800 x height 800 mm

Outer box size approx

Width 1400x depth 1100 x height 1800 mm

Ring diameter

550   mm

Inner box material

304 stainless steel

Outer box material

Stainless steel

viewwindow

Waterproof tempered glass (about 400*600 will vary according to the actual size)

Turntable load

20KG (other load can be customized) Sample height 0-300mm (other height can be customized)

Control mode

Color touch screen

IPX3-IPX4 pendulum tube test device

Orifice diameter

The 0.4 mm

Orifice distance

50mm spacing

Water pressure (Mpa)

Regulate water flow according to regulations

Pendulum diameter

16   mm

Test time

1-999min, adjustable

Pendulum Angle

IPX3: ±45°/60°/90° around the vertical line (or custom)

Pendulum velocity

IPX3:15 times /min IPX4:10 times /min

Rotary speed

1-5rpm

Blowhole flow

0-0.07 L/min plus or minus 5%

Power source

Single-phase, AC220V, 50/60HZ 1.5KW
